MetriX

For purposes of quantitative comparison, a software utility has been written to allow the user to superimpose RAPT and GammaPlan dose data. The image below shows such a comparison for a multi-shot treatment. A choice of suitable metrics (based on volume ratios, cross correlation etc.) facilitates quantitative comparison of the two dose distributions. The MetriX software also permits comparison between experimentally obtained dose data (from GafChromic film) and that determined by the numeric methods. Click here for a demo (1.5MB video).

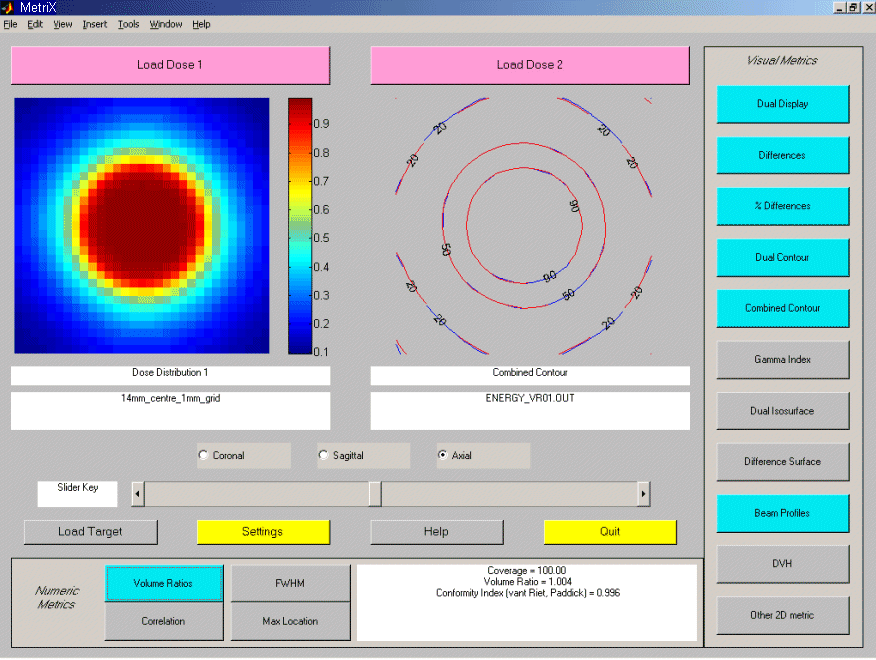

The MetriX interface

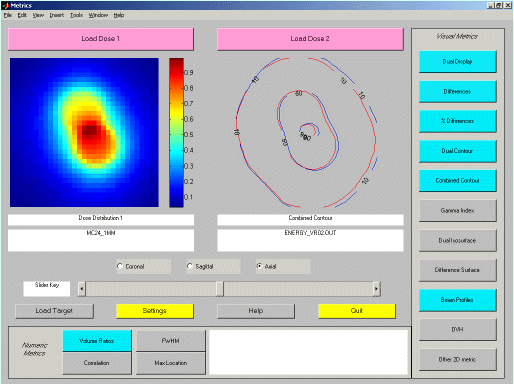

MetriX Facilitates comparison between two plans (red and blue contours)

MetriX

Phantom comparison

MetriX

Comparison with bony shell

MetriX

GafChromic film comparison
